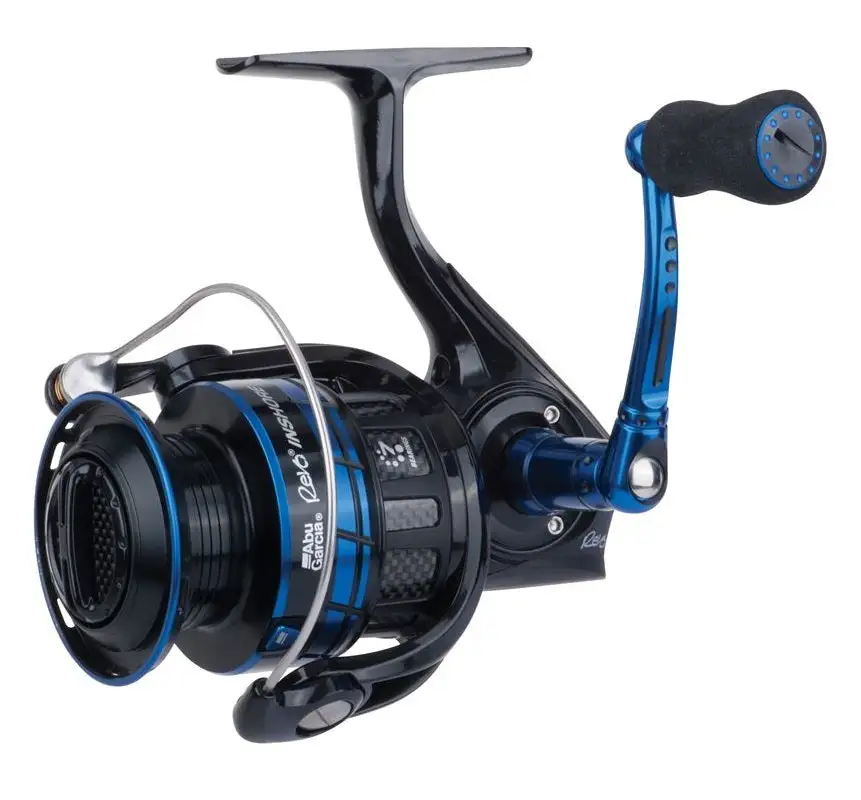

Abu Garcia Revo 2 Inshore Spin Reel

Hard fighting inshore species have met their match. The Revo® Inshore spinning reel has been specifically engineered to handle the abuse of hard pulling fish as well as corrosive saltwater fishing environments.

We started with an upgraded Insert Molded C6 (IM-C6™) carbon body design, combined it with a powerful machined aluminium main gear and added our tried-and-true Carbon Matrix™ drag system for efficient drag performance. HPCR™ bearings give anglers exceptional corrosion resistance and deliver ultra-smooth performance for the long haul.

*40 and 60 size utilizes an all-aluminium body

Features

– 6 stainless steel HPCR™ bearings + 1 roller bearing
– AMGearing™ system
– Computer optimized gear design
– Carbon Matrix™ drag system
– C6 carbon rotor
– Lightweight aluminum rotor (60 size)
– IM-C6 body design combines an X- craftic™ gearbox design with a C6 carbon body, (30-35 sizes)
– X- Cräftic™ alloy body (40-60 size)
– Rocket line management™ system
– Rocket spool lip design™
– K-Clutch™ anti reverse (30-40)
– Large EVA knobs
– Machined aluminum braid ready spool allows braid to be tied directly to the spool without any slip
– Stainless steel main shaft and components
– Everlast™ bail system
– Slow Oscillation provides even line lay with all types of line
– Specially designed for saltwater applications

Specifications

MODEL: REVO2INS30
– Ratio 6.2:1
– Weight 218 grams
– Drag 5.2 kg
– Braid Line Capacity 10lb / 180yd

MODEL: REVO2INS35
– Ratio 6.2:1
– Weight 229 grams
– Drag 5.2 kg
– Braid Line Capacity 14lb / 190yd

MODEL: REVO2INS40
– Ratio 6.2:1
– Weight 266 grams
– Drag 8 kg
– Braid Line Capacity 16lb / 220yd

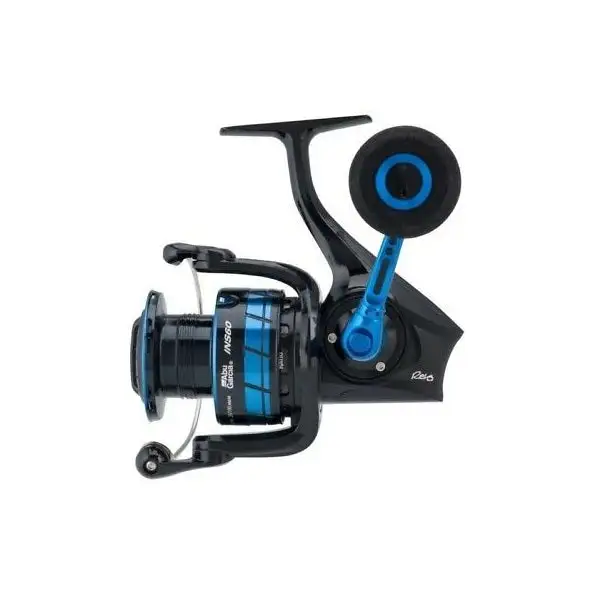

MODEL: REVO2INS60
– Ratio 6.2:1
– Weight 396 grams
– Drag 10.8 kg
– Mono Line Capacity 20lb / 200yd
