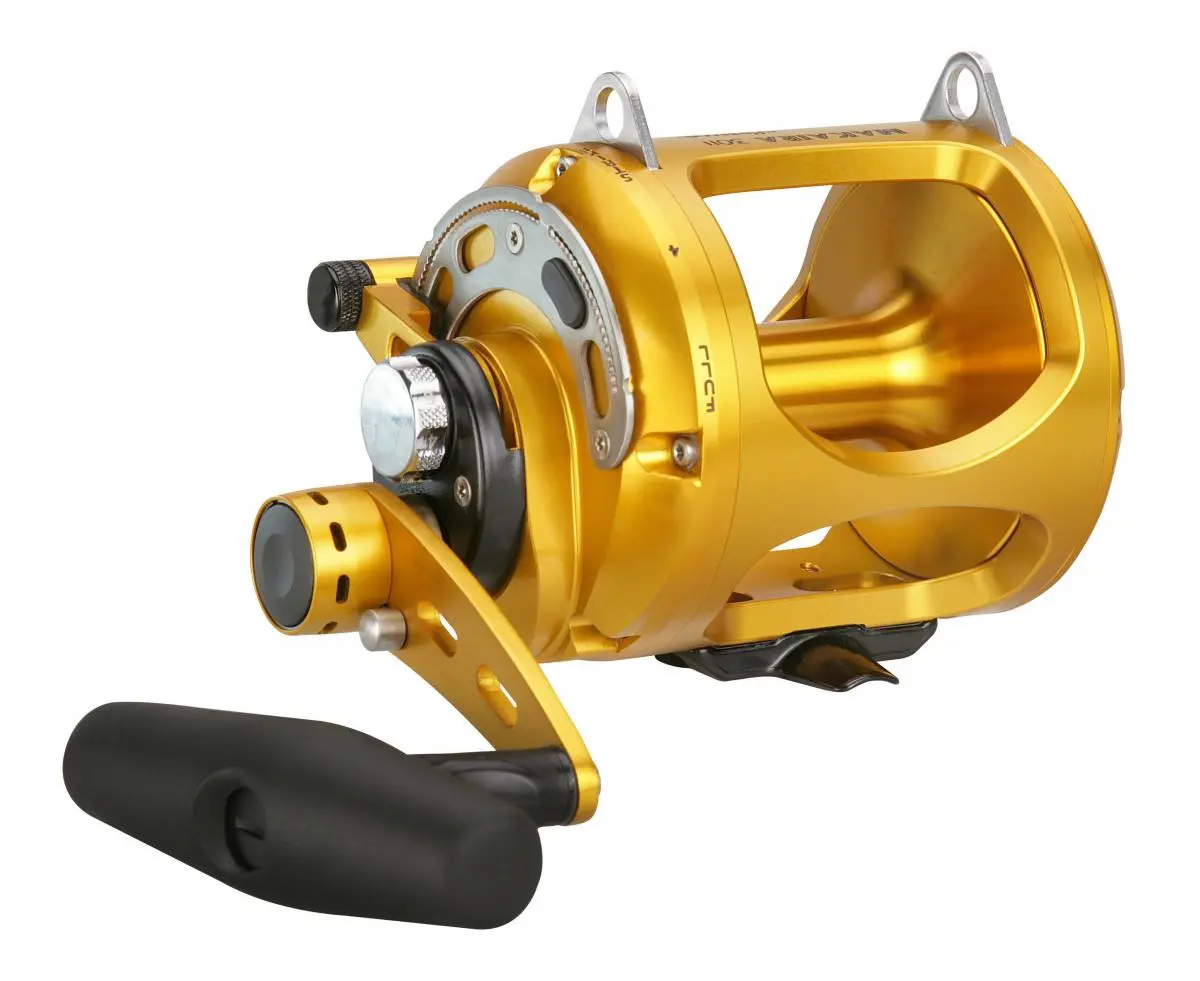

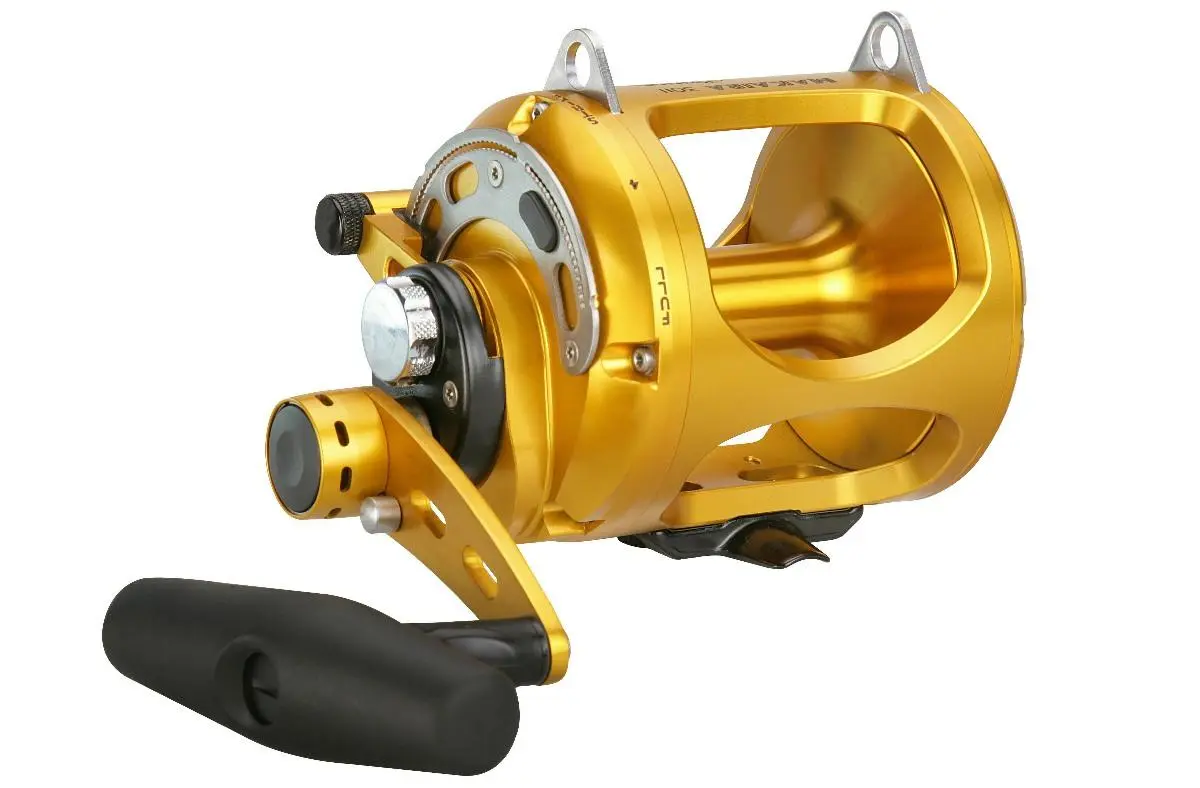

Okuma Makaira Gold Lever Drag Overhead Game Reel

Built on Okuma’s 4D concept – Design, Drive, Drag & Durability, the Makaira series of two-speed reels reinvent the offshore reel, thanks to the combined efforts of Okuma’s multi-national design team, in cooperation with Tiburon Engineering.

Advanced, unique and with numerous patents to its credit Makaira provides excellence in every aspect of design, construction and performance, in sizes to suit all game fishing applications.

Features

– 6061-T6 machined aluminum frame with forged side plates.
– 17-4 grade stainless steel gearing.
– Helical cut gears for increased torque, smoothness and improved gear meshing.
– Makaira reels all feature two-speed gearing systems.
– Gold anodized two-speed gear shifter housing.
– Cold forged, Type-II anodized, machined aluminium spool.
– CRC: Corrosion Resistant Coating process.
– Patented spool pin system for use with braided or mono lines.
– Carbonite Dual Force drag system featuring Cal’s universal drag grease.
– Custom designed thrust bearing: Alleviates side load on heavy drag settings.
– 4-pcs ABEC-5 precision Sapporo stainless steel ball bearings.
– MK-80WII features 6-pcs of Sapporo ball bearings.
– Double-dog, proprietary silent anti-reverse system.
– Ratcheting drag lever and pre-set knob for precise drag setting.
– Patented T-Bar handle with Easy Roll graphite insert on all models.
– Heavy duty stainless steel ratcheting clicker system.
– Heavy duty, 17-4 grade stainless steel drive and spool shafts.
– Type-II gold anodized frame, sideplates, spool, drag lever and handle
– Open top frame design on MK-10II, 15II, 20II, and 50II.
– Lug and plug system on all open top reel models.
– Machined thumb rest on rear cross bar for improved ergonomics.
– Forged aluminium full hard anodized reel foot and reel clamp.
– Machine-etched marlin logo on left side plate.
– Precision placement of drain holes maximises water removal from reel.
– Special screw ports around side plate screws reduces water / corrosion build-up.

Specs listed below, including Max Strike Drag with Freespool and Max Full with Freespool.

Specifications

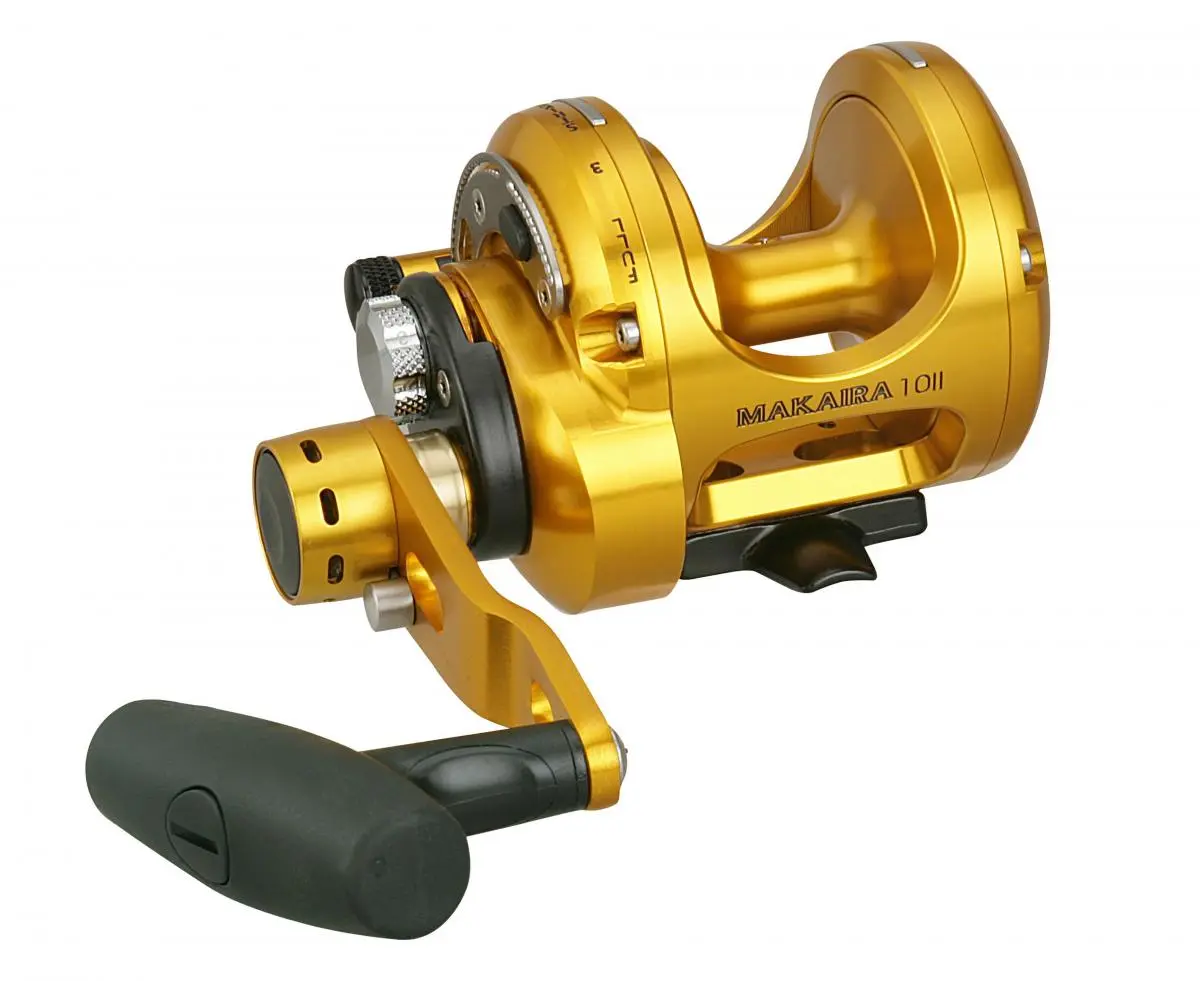

Model: MK-10II
-Gear Ratio: 4.7:1 & 2.1:1
– Weight: 740g
– Max Strike Drag: 12.3kg
– Max Full: 15.4kg
– Mono Capacity (LBS/YDS): 15/460, 20/380, 25/280
– Capacity (mm/Metres): 0.37/420, 0.42/350, 0.48/260

Model: MK-15II
-Gear Ratio: 4.7:1 & 2.1:1
– Weight: 780g
– Max Strike Drag: 12.3kg
– Max Full: 15.4kg
– Mono Capacity (LBS/YDS): 20/550, 25/410, 30/310
– Capacity (mm/Metres): 0.42/500, 0.48/370, 0.55/280

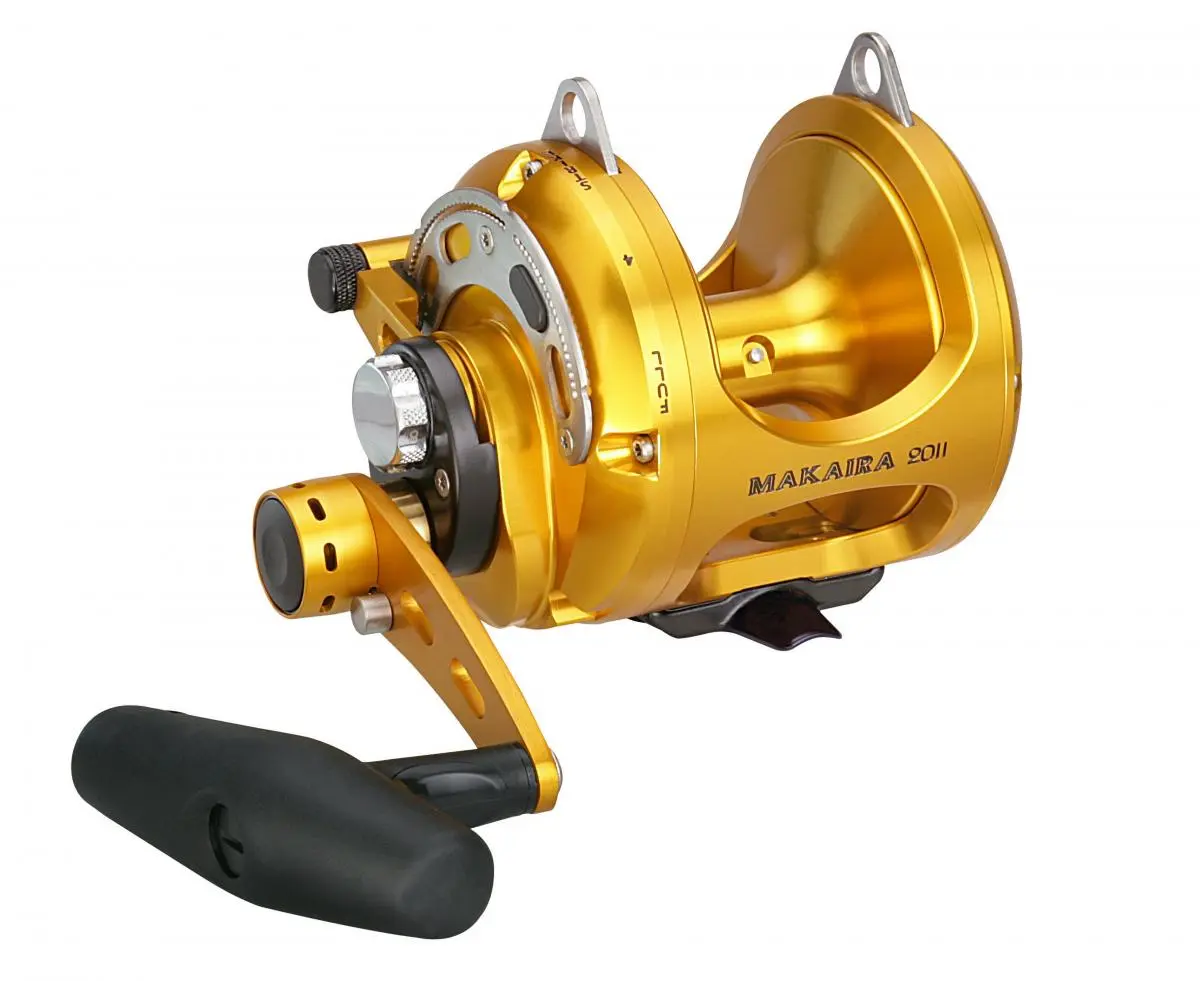

Model: MK-20II
-Gear Ratio: 3.8:1 & 1.7:1
– Weight: 1298g
– Max Strike Drag: 16.8kg
– Max Full: 25kg
– Mono Capacity (LBS/YDS): 25/870, 30/660 40/530
– Capacity (mm/Metres): 0.48/800, 0.55/600, 0.60/480

Model: MK-30II
-Gear Ratio: 3.8:1 & 1.7:1
– Weight: 1417g
– Max Strike Drag: 16.8kg
– Max Full: 25kg
– Mono Capacity (LBS/YDS): 30/850, 40/700, 50/550
– Capacity (mm/Metres): 0.55/700, 0.60/640, 0.70/500

Model: MK-50II
-Gear Ratio: 3.2:1 & 1.3:1
– Weight: 1747g
– Max Strike Drag: 27.2kg
– Max Full: 39kg
– Mono Capacity (LBS/YDS): 30/1000, 50/650, 80/400
– Capacity (mm/Metres): 0.55/910, 0.70/590, 0.90/360

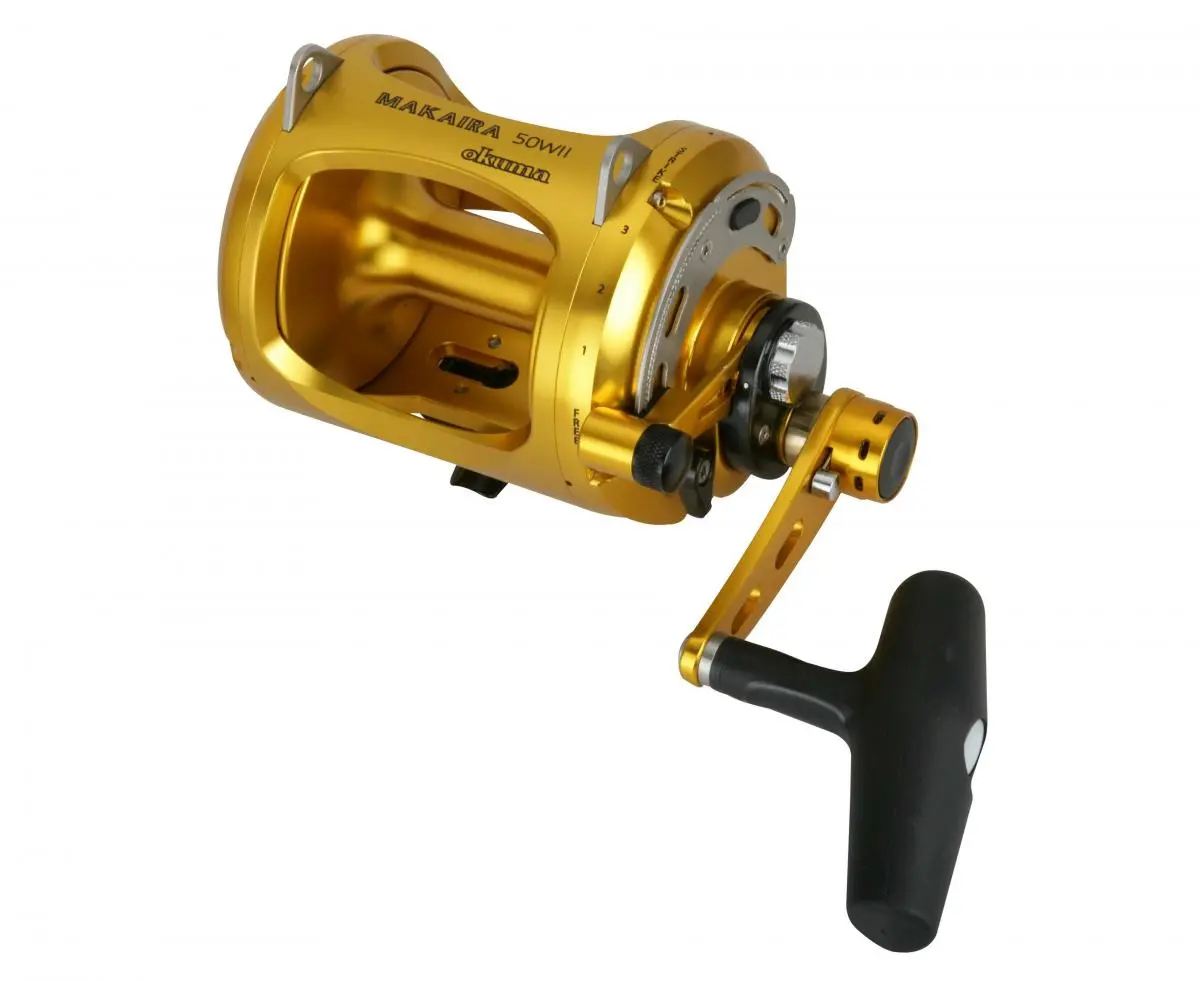

Model: MK-50WII
-Gear Ratio: 3.2:1 & 1.3:1
– Weight: 1843g
– Max Strike Drag: 27.2kg
– Max Full: 39kg
– Mono Capacity (LBS/YDS): 50/900, 60/780, 80/560
– Capacity (mm/Metres): 0.70/820, 0.75/710, 0.90/510

Model: MK-80WII
-Gear Ratio: 3.2:1 & 1.3:1
– Weight: 3289g
– Max Strike Drag: 32.1kg
– Max Full: 45.4kg
– Mono Capacity (LBS/YDS): 80/1000, 100/850, 130/660
– Capacity (mm/Metres): 0.90/910, 1.00/770, 1.12/600

Model: MK-130II
-Gear Ratio: 2.2:1 & 1.2:1
– Weight: 4750g
– Max Strike Drag: 34.1kg
– Max Full: 45.4kg
– Mono Capacity (LBS/YDS): 80/1570, 100/1270, 130/1000
– Capacity (mm/Metres): 0.90/1450, 1.00/1170, 1.12/920
